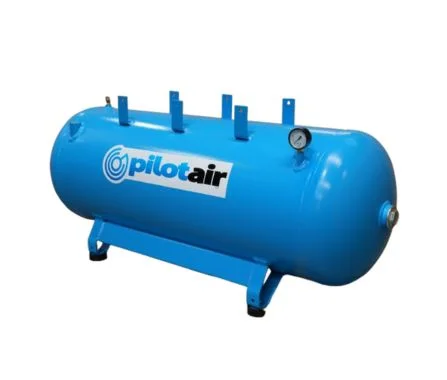

The Pilot 300268 Horizontal Compressed Air Storage Tank is part of our range of horizontal air receivers for compressed air storage. Custom built and vertical air receivers are also available.
| Product Code | Description | L (mm) | W (mm) | H (mm) | |
|---|---|---|---|---|---|
| 3000268 | Air Receiver – Horizontal/ 268 L/1100 Kpa | 1540 | 490 | 705 | |
Finished in industrial grade powder coat, the Pilot 300268 Horizontal Compressed Air Storage Tank is manufactured to AS1210 and provided with the manufacturer’s data report. Supplied as standard with safety valve, pressure gauge and manual condensate drain, you can rest easy with this compressed air storage solution.
From air compressors through to compressed air storage, treatment and distribution, our extensive range of compressed air products ensures we have the right solution for your business needs, no matter the industry or application. We also offer custom-built packages and compressed air systems that are fit for purpose and tailored to your budget.
The Pilot 300268 Horizontal Compressed Air Storage Tank is manufactured in Australia to AS1210 standards, with industrial-grade enamel finish, and supplied with a manufacturer’s data report. This ensures durability in Australia’s harsh climates and compliance with local regulations.
Capacity: 268 L
Maximum pressure: 1,100 kPa
Dimensions (L × W × H): 1,540 mm × 490 mm × 705 mm
Tolerance on technical data: ± 5%
Full details are available on the product page
Yes. The Pilot 300268 Tank is WorkCover NSW Plant Design Registered, manufactured to AS1210, and includes standard safety features such as a safety valve, pressure gauge, and manual condensate drain.
Every Pilot 300268 Horizontal Tank comes with:
Safety valve
Pressure gauge
Manual condensate drain
Manufacturer’s data report
Industrial-grade enamel finish
Yes. Pilot Air offers a wide range of air compressor storage and dryer solutions including both horizontal and vertical receivers, in capacities from small workshop sizes to large industrial tanks. Custom builds are also available for unique site requirements.
